XE 2000 Fog Fan – Explosion-Proof
Industrial Humidification &
Evaporative Cooling System

Manufactured in the USA by Jaybird Manufacturing

The Aquafog XE-2000-EXP centrifugal fogging system is Jaybird’s largest atomizer, engineered for high-output industrial humidification, evaporative cooling, and environmental control in hazardous industrial environments requiring explosion-proof motor protection.

Unlike high-pressure nozzle systems or spinning disc foggers, the XE utilizes a nozzle-free centrifugal atomizer that helps eliminate clogging while delivering high-volume, ultra-fine fog dispersion.

The Explosion-Proof (EXP) configuration is designed for use in classified environments where hazardous vapors, dust, or combustible particles may be present. The motor is rated for Class I, Group D and Class II, Groups F & G locations.

Important – Explosion-Proof Power Connection
Explosion-proof units must be connected using properly rated explosion-proof electrical utilities, including both the male plug and matching female receptacle.

Using a standard non-rated plug, receptacle, or power connection will defeat the explosion-proof protection of the unit.

Jaybird offers an optional explosion-proof male plug for the unit power cord; however, the receiving female receptacle and all associated electrical components must also be properly rated and supplied by the customer or installing contractor.

XE 2000 systems produce tiny particles that evaporate quickly for humidification and evaporative cooling. Output is regulated by a stainless-steel visual flowmeter panel and can be operated continuously or automated using a secondary controller.

Indoor/Outdoor applications include: Humidification, Evaporative Cooling, and Chemical Fogging.

Stainless-steel fabrication and UV-stabilized polymers allow for harsh-environment use. The EXP model includes 20’ of water line and 16’ of drainage line. Line lengths may be customized during the ordering process.

High-Output Fogging in Action

  • No nozzle clogging or high pressure pumps
  • Projects fog high into the air for better evaporation
  • Designed for large-area cooling, humidification, and chemical fogging
Projects high-output fog for wide-area cooling and
humidification in industrial environments

Part of the XE Atomizer Family

The XE platform represents our largest atomizer class, designed for maximum coverage and industrial-scale output.

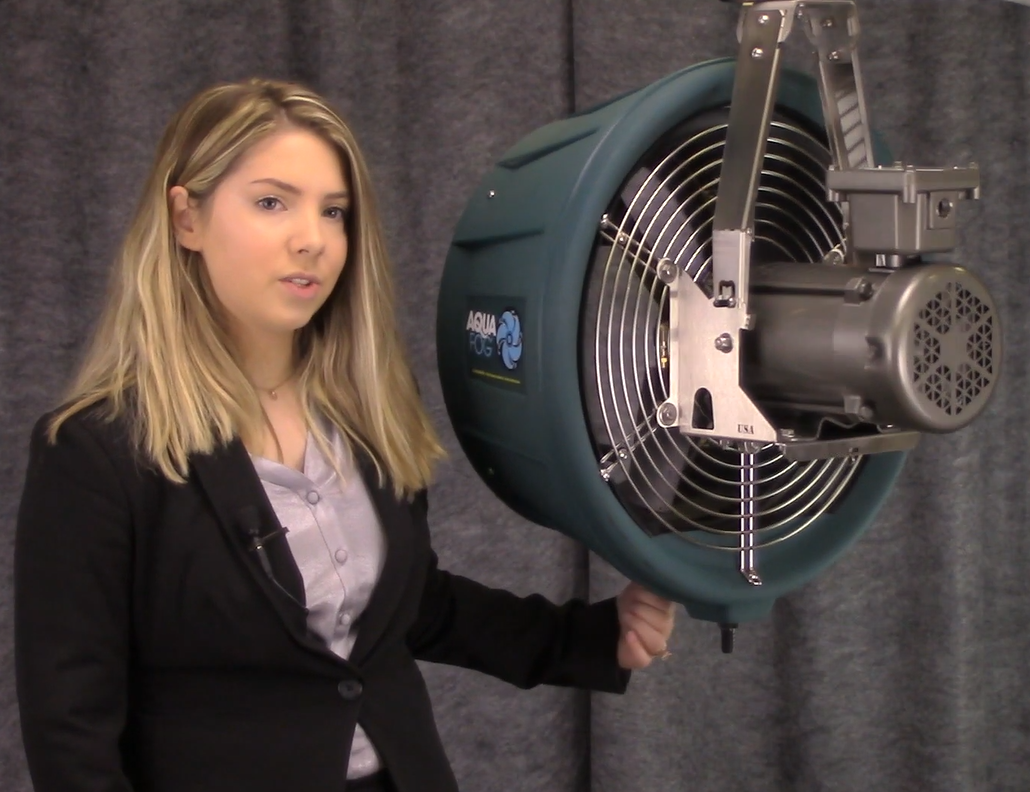

Designed for high-output fogging in
classified industrial environments

Performance Highlights

  • Rated for Class I, Group D & Class II, Groups F & G
  • Net Fogging Output: Up to 16 GPH
  • Evaporative Cooling Capacity: 127,500 BTU/hr
  • Stainless-Steel Flowmeter Panel
  • UPS-able (Motor Ships Separately)
  • Starts at $2,289.00

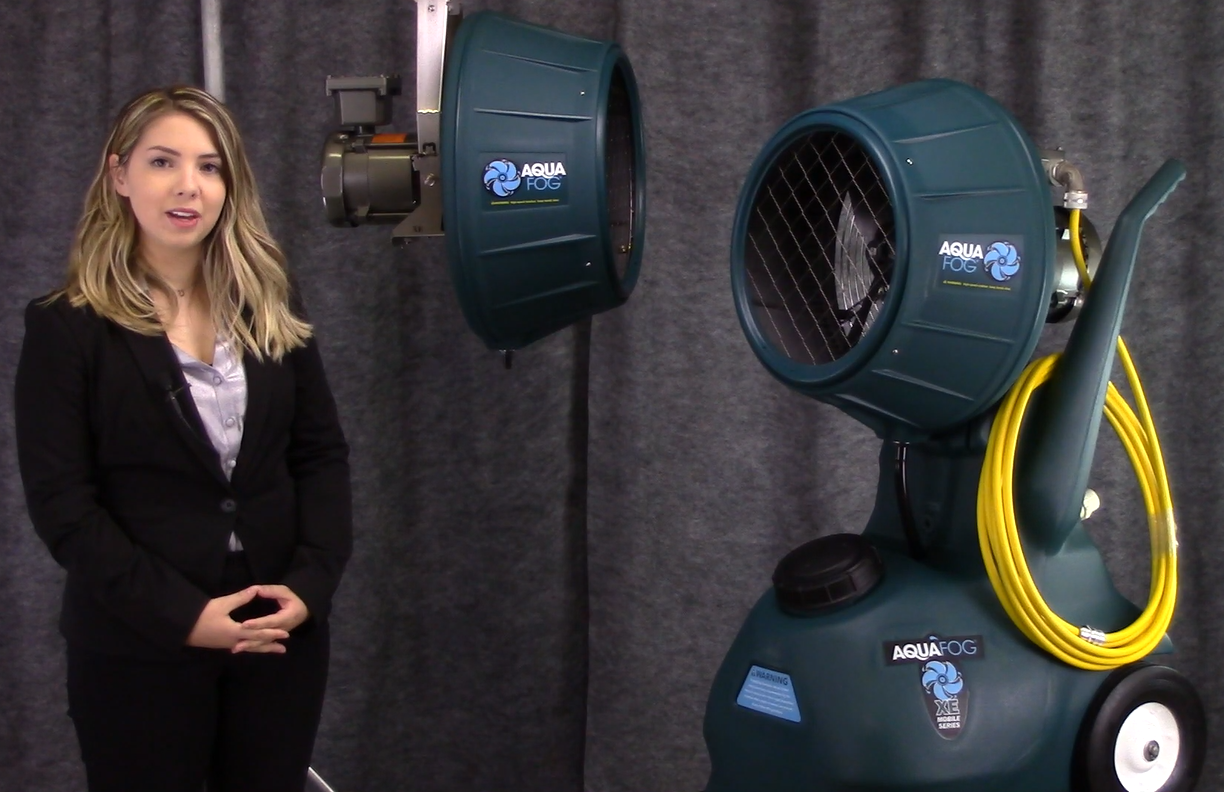

Also available in a mobile hazardous-duty configuration:
HRSM Explosion-Proof

XE 2000 Configuration Comparison

Compare XE 2000 configurations to determine the best installation method for your facility.

Feature [XE] Direct Feed [XE] Hanging Sump [XE] Explosion-Proof
Drain Required Yes No Yes
Recirculating Tank No Yes No
Flowmeter Panel Yes No Yes
Shipping Method UPS - Motor Ships Separate Freight UPS - Motor Ships Separate
Assembly Required Motor & Blade Installation None - Fully Assembled Motor & Blade Installation
Best For Permanent Install Drain-Free Install Classified Areas

Hazardous Environment Humidification Applications

The Jaybird Aquafog XE-2000-EXP explosion-proof fogger is designed for humidification and evaporative cooling in hazardous or classified environments where standard industrial equipment cannot be safely installed. Equipped with an explosion-proof motor and heavy-duty construction, the XE-2000-EXP allows facilities to control humidity while maintaining strict safety requirements.

This configuration is commonly used in chemical processing facilities, petroleum operations, industrial manufacturing plants, and other environments where combustible dust, vapors, or hazardous conditions may be present.

Engineered for use in classified areas
with combustible dust and volatile vapors

Typical applications include:

  • Chemical processing facilities
  • Petroleum and refinery operations
  • Hazardous industrial environments
  • Manufacturing areas with combustible dust
  • Industrial humidity control in classified locations
  • Evaporative cooling in safety-regulated facilities

Using Jaybird’s centrifugal atomization technology, the XE-2000-EXP delivers consistent fog output without clogging nozzles, making it a dependable solution for demanding industrial environments where reliability and safety are critical.

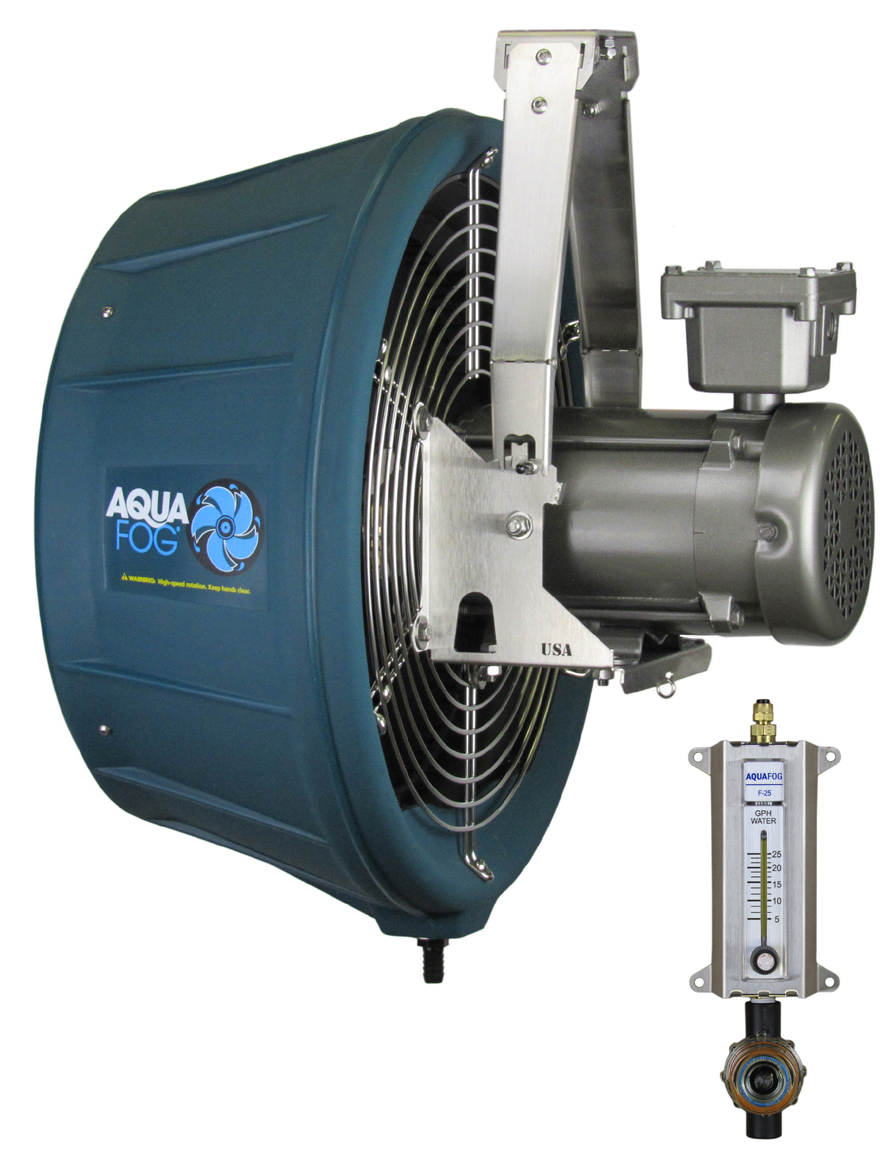

Aquafog SST Flowmeter Panel

Turbo XEs come with a visual flowmeter panel of your choice.

The flowmeter panel connects to a pressurized water supply and allows the operator to monitor and adjust the water feed rate going to the XE atomizer. A precision needle valve regulates the flow, while the clear polycarbonate meter provides easy visual confirmation of system operation.

Explosion-proof direct-feed units should always be paired with an appropriately rated explosion-proof water shutoff valve. This ensures water flow stops automatically whenever power to the unit is interrupted or cycled off. Because explosion-proof control components vary by installation and area classification, shutoff valves, controls, receptacles, and associated electrical components must be provided by the customer or installing contractor.

Lower feed rates generally produce a drier, finer fog. Higher feed rates produce heavier fog, larger droplets, and more drain-off.

Flowmeter Selection Guide

Flowmeter Scale Best Operating Zone (GPH) Net Fogging Output (GPH) Drain Discharge (GPH) Average Particle Size Fog Character
1 to 5 GPH Mid-scale to 5 Up to 4.5 Up to 0.5 4 - 8 Microns Driest fog / vapor
2 to 10 GPH Mid-scale to 10 Up to 7.5 Up to 2.5 8 - 12 Microns Dry fog / light humidification
3 to 15 GPH Mid-scale to 15 Up to 10 Up to 5 10 - 15 Microns General humidification
5 to 25 GPH Mid-scale to 25 Up to 15 Up to 10 12 - 20 Microns Higher-output fogging
8 to 32 GPH Mid-scale to 32 Up to 16 Up to 16 15 - 25 Microns Maximum cooling / highest output

Selection Tip: If in doubt, do not automatically choose the largest flowmeter. Select the smallest meter that comfortably covers your intended feed rate.

Important: At higher feed rates, excess water is discharged through the drain tube and droplet size increases. Lower-range meters are generally preferred for dry fog and humidification work, while higher-range meters are better suited for high-output evaporative cooling applications.

Water Control Note: Explosion-proof direct-feed Turbo XE units should always include an appropriately rated explosion-proof shutoff valve (or equivalent control device) to automatically stop water flow whenever power to the unit is interrupted or cycled off. All electrical controls, shutoff valves, plugs, and receptacles must be customer supplied and matched to the site’s required hazardous location classification.

Drainage Port

A specially engineered drainage port at the base of the motor allows condensation to escape, helping prevent internal moisture buildup while preserving the motor’s explosion-proof integrity.

  • Extends motor life
  • Made in USA

Flexible Cable

Optional flexible cord packages are available for installations requiring mobility or non-rigid connections.

  • Extra hard usage rated
  • STOW yellow jacket (660V, 60°C)
  • UL / CSA / MSHA / RoHS compliant

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.


Watch Video
See Jaybird atomizers in action (1:17)
[XE] Atomizer

Dimensions:

Diameter 21 in / 53.5 cm

Depth 17.5 in / 44.5 cm

Height 25 in / 63.5 cm
Propulsion Distance:

30-35 ft / 10-11 m
CFM: 3,000
Cooling Capability: 127,500 Btu/h
Noise @ 10 ft:

72 dB(A)
Average Particle Size:

5-10 microns @ low output

25 microns @ mid output

35 microns @ high output
Max. Fogging Output:

15.8 GPH
Operation:

Continuous duty capability
Energy Consumption:

1/2 HP - 7.4/3.7A @ 115/230V
Hardware: 300 Series stainless steel
Shipping Weight:

Box 1, 19 lbs

Box 2 (1/2 HP), 32 lbs
Box Dimensions:

Box 1, 21” x 21” x 15”

Box 2, 16” x 12” x 12”
Environment:

Endures temperatures from
31° to 160° F

Indoors / outdoors

Humidity to 85% RH

UV stabilized & impact resistant
Country of Origin:

USA

ABB® Explosion-Proof motors are UL and CSA approved for the following hazardous locations:

  • Class 1, Group D locations containing volatile gases such as Gasoline, Hexane, Naphtha, Benzene, Propane, Alcohol, etc.
  • Class 2, Group F & G locations containing dust such as (F) Carbon Black, Coal or Coke Dust or Group (G) Flour, Starch, or Grain Dusts.
  • Molded Floor Stand

    Easy Set-up Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows quick, easy set-up. Capable of stationary or oscillating set-ups. Stands are molded of heavy-wall, polyethylene reinforced material.

    • Quick assembly
    • Five height settings
    • Sleek, sturdy design

    Only in Black

    XE-110 $189.00
  • Economy Traveling Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows for an affordable solution. Capable of stationary or oscillating set-ups. Stands are constructed of heavy-wall pipe and prime grade lumber.

    • Fully adjustable boom
    • 10” molded wheels
    XE-100 $195.00
  • Wall Mount

    The Wall Mount Support provides adjustable height along its 30" vertical length. The cross-support extends 21", accommodating for 360° sweep rotation.

    • Supplied with Lag bolts and masonry anchors
    XE-W $117.00
  • Ceiling Mount

    Support has 36" horizontal length

    • Supplied with Lag bolts
    XE-C $73.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
