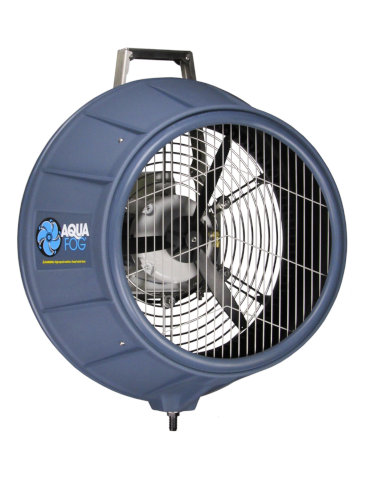

GT 500 Direct Feed

GT 500 Fog Fan – Direct Feed
Industrial Humidification &
Evaporative Cooling System

Manufactured in the USA by Jaybird Manufacturing

The Aquafog GT-500 centrifugal fogging system is designed for industrial humidification, evaporative cooling, and environmental control in warehouses, manufacturing facilities, agricultural operations, and commercial spaces where OSHA-compliant equipment and reliable fogging performance are required.

Unlike high-pressure misting systems or air-assisted nozzle foggers, the GT-500 uses Jaybird’s centrifugal atomization technology to produce fine fog particles without clogging nozzles or requiring high-pressure pumps. The 14-inch industrial atomizer produces fog that evaporates quickly for effective cooling and humidity control.

The GT-500 was engineered for facilities where the stronger propulsion of the Turbo XE series is not required. By using a milder fan blade pitch and an OSHA-compliant safety guard, the GT-500 provides dependable fogging performance while maintaining safe operation in occupied workspaces.

Part of the GT Atomizer Family

• Direct Feed (GT-500) – {This Model}
• Hanging Sump (GT 500-HS)

The GT platform provides reliable fogging performance with quieter airflow and simplified installation, making it ideal for facilities that require OSHA-compliant equipment and ready-to-install fogging systems.

High-Output Fogging in Action

  • No nozzle clogging or high pressure pumps
  • Projects fog high into the air for better evaporation
  • Designed for large-area cooling, humidification, and chemical fogging
Projects high-output fog for wide-area cooling and
coverage in industrial environments

Performance Highlights

  • Fogging Output: Up to 6 GPH
  • Evaporative Cooling Capacity: 46,500 BTU/hr
  • OSHA-Compliant Safety Guard
  • Nozzle-Free Centrifugal Atomizer
  • Wash-Down Duty Industrial Motor
  • Ships Fully Assembled – UPS Compatible
  • Starting at $1,399.00

View Frequently Asked
Questions for the GT 500 Series →

GT 500 Configuration Comparison

Compare GT 500 configurations to determine the best installation method for your facility.

Feature [GT] Direct Feed [GT] Hanging Sump
Drain Required Yes No
Recirculating Tank No Yes
Flowmeter Panel Yes No
Shipping Method UPS Freight
Assembly Required None - Fully Assembled None - Fully Assembled
Best For Permanent Install Drain-Free Install

Industrial Cooling & Humidification Applications

The Jaybird Aquafog GT-500 fogging system is designed for evaporative cooling, humidification, and environmental control in industrial and agricultural facilities where quieter airflow and OSHA-compliant equipment are required.

Demonstrates targeted fog delivery for industrial
cooling, humidification, and environmental control
across a wide range of facility applications.

Typical applications include:

  • Industrial humidification systems
  • Warehouse and facility cooling
  • Agricultural and livestock cooling
  • Greenhouse environmental control
  • Dust suppression in light industrial environments
  • Outdoor cooling for workspaces and patios
By combining centrifugal fogging technology with an OSHA-compliant guard and fully assembled design, the GT-500 provides dependable fogging performance while simplifying installation and maintenance.
GT-500 $1399.00

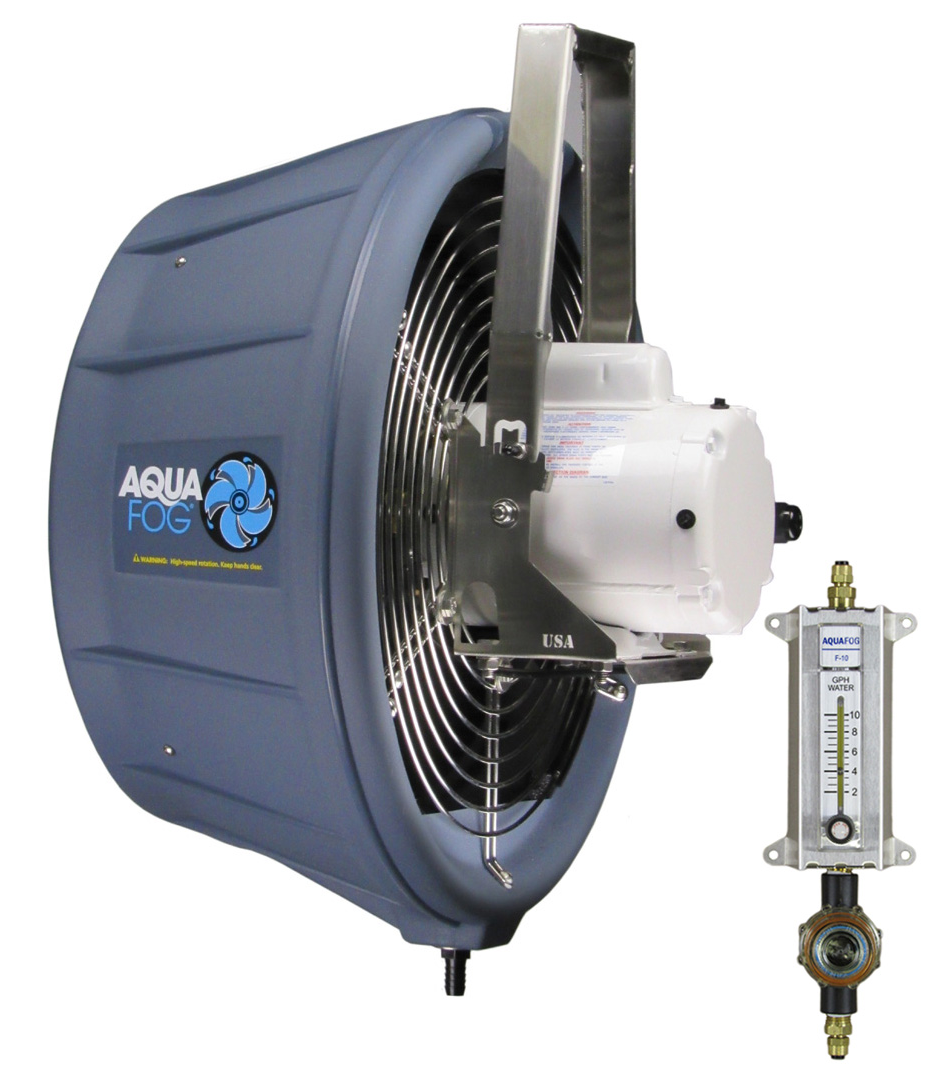

Aquafog SST Flowmeter Panel

GT 500-DF units come with a visual flowmeter panel of your choice.

The flowmeter panel connects to a pressurized water supply and allows the operator to monitor and adjust the water feed rate going to the GT atomizer. A precision needle valve regulates the flow, while the clear polycarbonate meter provides easy visual confirmation of system operation.

Direct-feed GT units should always include a water solenoid shutoff valve. This ensures water flow stops automatically whenever power to the unit is interrupted or cycled off. All Jaybird control packages already include an integrated solenoid. If operating manually or using a preexisting control system, a separate solenoid must be installed in the supply line.

Because the GT operates over a lower overall flow range than the XE, selecting the correct flowmeter range is especially important. For best reliability, choose the smallest flowmeter that still covers your intended operating range. This keeps the needle valve operating in a more open position and helps reduce restriction from ordinary sediment or biological buildup sometimes present in water supplies.

Lower feed rates generally produce a drier, finer fog. Higher feed rates produce heavier fog, larger droplets, and more drain-off.

Flowmeter Selection Guide

Flowmeter Scale Best Operating Zone (GPH) Net Fogging Output (GPH) Drain Discharge (GPH) Average Particle Size Fog Character
1 to 5 GPH Mid-scale to 5 Up to 3.5 Up to 1.5 8 to 12 Microns Finest / driest fog
2 to 10 GPH Mid-scale to 10 Up to 5.5 Up to 4.5 12 to 20 Microns General-purpose fogging
3 to 15 GPH Mid-scale to 15 Up to 6 Up to 9 15 to 25 Microns Highest GT output

Selection Tip: If in doubt, do not automatically choose the largest flowmeter. Select the smallest meter that comfortably covers your intended feed rate.

Important: At higher feed rates, excess water is discharged through the drain tube and droplet size increases. Lower-range meters are generally preferred for drier fog and finer performance, while higher-range meters are better suited when maximum GT output is needed.

Water Control Note: GT direct-feed units operated manually or connected to preexisting control systems should always include a water solenoid (or equivalent shutoff valve) to automatically stop water flow whenever power to the unit is interrupted or cycled off. See Water Solenoid - DF by selecting the Control Packages tab above.

Hydrophilic Front Guard

The front guard meets OSHA safety regulations and is specially processed to create hydrophilic properties, allowing water to wick down the guard and back into the housing rather than bead and be thrown outward by the spinning atomizer.

  • Meets OSHA Safety Regulations
  • 304 Stainless Steel Construction
  • Hydrophilic Surface Treatment for Water Wicking

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.


See comparisons of Jaybird atomizers in action (1:17 video)

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

[XE] Atomizer
[GT] Atomizer
[SS] Atomizer

Jaybird Atomizer Platform Comparison

Feature XE Atomizer GT Atomizer SS Atomizer
Motor Size 1/2 HP 1/4 HP 1/20 HP
Atomizer Diameter 14 Inch 14 Inch 10 Inch
Fog Output Up to 16 GPH Up to 6 GPH Up to 3.5 GPH
Noise @ 10’ 72 dB(A) 70 dB(A) 63 dB(A)
Average Particle Size 2 to 25 Microns 5 to 25 Microns 15 to 35 Microns
CFM 2,500 - 3,000 1,200 - 1,800 800 - 980
Propulsion Distance 30 - 35 Feet 25 - 30 Feet 10 - 12 Feet
Best For Industrial / Agriculture Mid-Size Facilities Small Areas

Jaybird’s Centrifugal Atomizers are powered by industrial grade wash-down-duty motors. Designed for wet applications (IP 55). Systems are Indoor/Outdoor and capable for continuous-duty

Overall Dimensions:

Diameter 22 in / 55.9 cm

Depth 17.5 in / 44.5 cm

Height 25 in / 63.5 cm

Propulsion Distance:

25-30 ft / 7.6-9.1 m
Noise @ 10 ft:

70 dB(A)
Average Particle Size:

5-10 microns @ low volume

25 microns @ high volume
Max. Fogging Output:

5.8 GPH - 60Hz

18 LPH - 50Hz
CFM:

1,800 - 60Hz

1,440 - 50Hz
Cooling Capability:

46,500 Btu/h @ 60Hz

37,000 Btu/h @ 50Hz
Operation:

Continuous duty capability
Energy Consumption:

1/4 HP - 3.4 amps @ 115V
1/4 HP - 1.8 amps @ 230V
1/5 HP - 2.0 amps @ 240V 50Hz
Shipping Weight:

42 lbs / 18.6 kg
Box Dimensions:

21" x 21" x 17"

53cm x 53cm x 42cm
Environment:

Endures temperatures from
31° to 160° F

Indoors / outdoors

Humidity to 100% RH

UV stabilized & impact resistant
Country of Origin:

USA
  • Digital Humidistat Control - DF

    Environmental Controller w/ Humidity Sensor & Solenoid Package
    A precision controller suitable for many applications. Control is very fast acting, displays humidity levels and has programmable differential range.

    - Not recommended for prolonged use above 90% RH.

    • Fast Acting Digital Sensor
    • Range 5-99% RH
    • Includes Water Solenoid for Direct Feed
    • Rated up to 1200W (10A @ 115V)
    • Over-Humidity and Sensor Fault Alarm
    DH-36-DF $180.00
  • Jaybird Humidistat - DF

    Dependable, Easy to Use
    This pre-wired humidistat is ideal for control in applications under 80% RH.
    Controller incorporates a mechanical-action sensor with simple dial control.

    • Range 20-80% RH
    • Includes Water Solenoid for Direct Feed
    • Rated up to 1400W (12A @ 115V)
    • Piggy-back plug, device connect
    XE-36-DF $174.00
  • Cycle Timer Control - DF

    Want to maintain high humidity above 80%, then this pre-wired time-cycle control is what you may need. Select time cycles ranging from 1 second to 24 minutes. Includes dual outlet adapter.

    • Water-tight Nema 4X
    • Includes Water Solenoid

    115V 60Hz
    CTA-120-DF $195.00

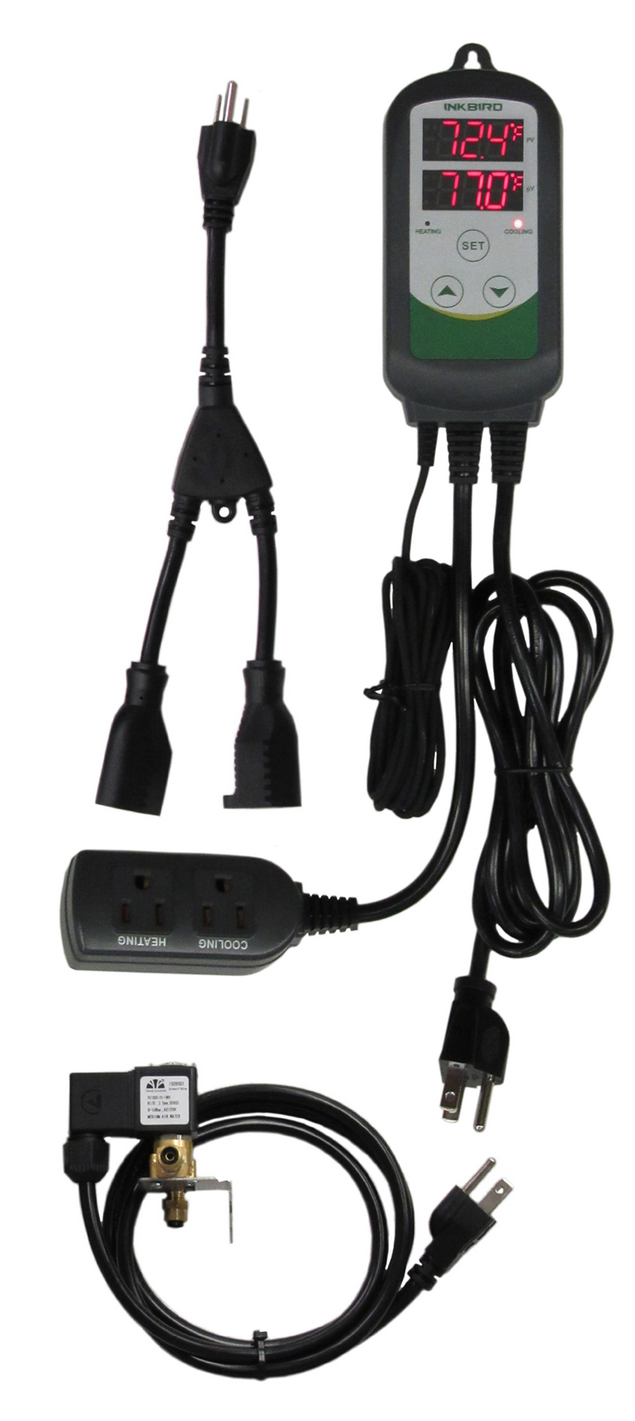

  • Thermostat Control - DF

    If your primary interest is indoor evaporative cooling, this pre-wired control is what you need to automate your SS 700-DF. Includes piggy-back plug.

    • Water-tight Nema 4X
    • Includes Water Solenoid
    • Control range 40-110º F
    • Differential 2º F
    THA-120-DF $195.00
  • Economy Traveling Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows for an affordable solution. Capable of stationary or oscillating set-ups. Stands are constructed of heavy-wall pipe and prime grade lumber.

    • Fully adjustable boom
    • 10” molded wheels
    XE-100 $195.00
  • Wall Mount

    The Wall Mount Support provides adjustable height along its 30" vertical length. The cross-support extends 21", accommodating for 360° sweep rotation.

    • Supplied with Lag bolts and masonry anchors
    XE-W $117.00
  • Ceiling Mount

    Support has 36" horizontal length

    • Supplied with Lag bolts
    XE-C $73.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
  • 24 Hour Timer Control - DF

    For automating on/off cycles

    This reliable mechanical timer with water solenoid turns power and water on and off at selected intervals. Ideal for dawn-to-dusk type applications. Rain-tight enclosure, 15A receptacle, 115V.

    • Two sets of on/off trippers provided
    • Minimum 30 minute intervals

    115V 60Hz
    TC-120-DF $157.00
  • Water Solenoid - DF

    Control water flow, electrically

    1. Use with preexisting control systems.
      Connect directly to the same power supply to automate water flow (on/off) in conjunction with the fan.
    2. Safeguard against power outage.
      If operating fogging units manually (no control system), a water solenoid installed in the unit’s water supply line will shut off water flow in the event of a power outage.
    • Mounting bracket | 6′ power cord with plug, 115V
    • NEMA 4 Water-tight components
    • ¼″ OD tubing connections
    SV-120-DF $98.00
  • XE 360 Oscillator

    Increase Coverage & Circulation

    Ideal for interior applications and permanent hanging installations, the XE 360 Oscillator increases fog coverage and air circulation through smooth, continuous sweeping motion. The oscillating action helps reduce droplet collisions and fallout while producing more uniform coverage patterns up to 70 feet in diameter. This allows the operator to run higher fog output levels than a stationary unit under equal conditions, resulting in less fallout and improved dryness beneath the fog pattern.

    Recommended for indoor use only. While the oscillator assembly is built with a durable stainless steel enclosure and performs well in harsh interior environments, it should not be used in outdoor windy conditions. Wind gusts can place repeated stress on the oscillating housing and gear system, potentially causing premature wear or damage to the mounting assembly. For outdoor applications, a stationary-mounted unit is strongly recommended.

    • 304 Stainless Steel Enclosure
    • Dwell-free Sweeps from 15º to 360º
    • Full 360º Rotation in 3 Minutes
    • On/Off Toggle Switch
    • Durable 75 Pound Weight Capacity
    XE—360 $339.00
